Explain:

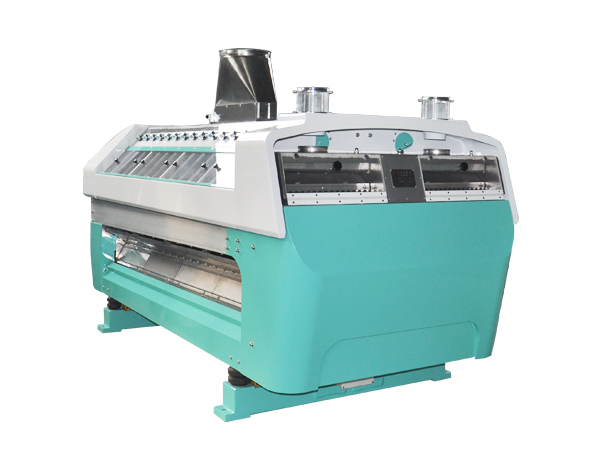

　　FQFD series purifier is one of the three main machines in flour mill, and it is a kind of special machine mainly used to process coarse and medium size materials discharged from grinder and plansifter and take out pure endosperm which is to be turned out into highly refined flour with low ash content at the reduction system.

　　Characteristics:

　　1、It is featured with reasonable design and compact structure, with vibration motor transmission adopted.

　　2、It is provided with advantages such as smooth operation, low noise and easy operation and maintenance.

　　3、Electronic laser is adopted for accurate feeding, and electrostatic spraying process is adopted, so the surface color is bright and no discoloration occurs for a long time.

　　Technical parameters:

Model	Output (t/h)	Air volume (m³/min)	Power (kw)	Weight of the unit (kg)	poundary dimension (L × W × H) mm
FQFD49×2×2	0.5-2.4	35-65	2×0.25	970	2700×1300×1750
FQFD49×2×3	0.5-2.8	40-70	2×0.25	1000	2700×1300×1800
FQFD39×2×2	0.3-1.9	30-50	2×0.18	750	2700×1100×1650
FQFD39×2×3	0.3-2.2	35-60	2×0.18	780	2700×1100×1700
FQFD39×1×3	0.3-1.4	25-40	2×0.18	550	2450×800×1660
FQFD60×2×3	0.7-3.3	50-85	2×0.25	1150	2750×1500×1830
FQFD75×2×3	3.5-5.5	60-95	4×0.25	1500	2650×1910×1870
