Explain:

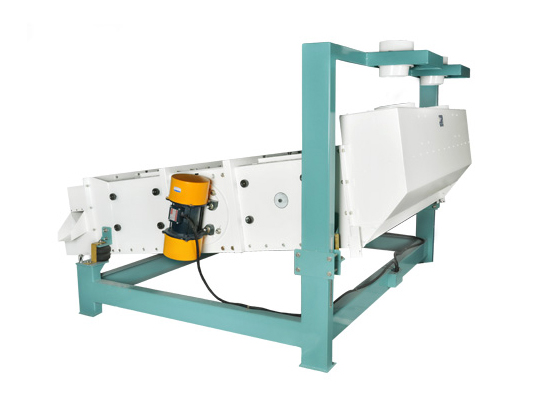

TQLZ series vibrating cleaning sieve is mainly used to sift and remove big, medium, small and light impurities among grains. It can be widely used in granule separation in rice milling, flour milling, oil making, feed, food, chemical engineering and other industries.
Characteristics;
1.It has satisfactory cleaning effect and large output
2.Vibration motor and high-quality rubber spring are adopted, and low noise and reliable operation can be guaranteed;
3.Vibrating sieve of this series is used together with TFDZ series vertical air-suction duct, which can remove dust, husks and other light impurities;
Technical parameters:
|
Spec. & model |
Sifting size |
Output (t/h) |
Power (kW) |
Mass (kg) |
Boundary dimension (L × W × H) |
|
|
Pre-cleaning |
Cleaning |
|||||
|
TQLZ80×100 |
80×100 |
12 |
5 |
2×0.25 |
360 |
2205×1132×1720 |
|
TQLZ100×100 |
100×100 |
25 |
8 |
2×0.25 |
420 |
2205×1132×1720 |
|
TQLZ100×150 |
100×150 |
35 |
12 |
2×0.37 |
530 |
2705×1532×1720 |
|
TQLZ100×200 |
100×200 |
45 |
15 |
2×0.37 |
700 |
3205×1532×1840 |
|
TQLZ150×150 |
150×150 |
45 |
15 |
2×0.55 |
790 |
2705×3066×1840 |
|
TQLZ150×200 |
150×200 |
50 |
20 |
2×0.55 |
890 |
3205×2066×1840 |
|
TQLZ200×200 |
200×200 |
60 |
24 |
2×0.75 |
1100 |
3205×2566×1840 |
