Explain:

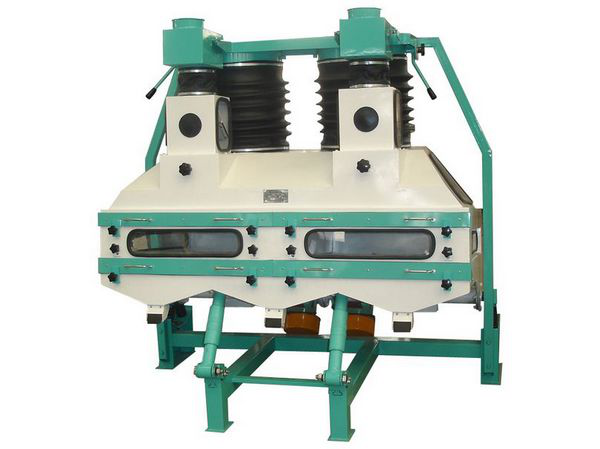

This type of equipment is mainly used for grain grading, light impurities and removal of sandstone and clod after pre-cleaning and first sifting of grains. Vibrating cleaning sieve of this series can be widely used in rice milling, flour milling, oil making, feed, food, chemical engineering and other industries. It is of double-layer sieve surfaces which have grading and stone removal functions.
Characteristics:
1.The equipment is equipped with a separate air-suction net, without flying dust.
2.The equipment functions under the effect of wind blowing, vibration and screening, and high stone-removal efficiency can be achieved.
3.It is featured with low energy consumption and noise, and easy operation and maintenance in the later period.
Technical parameters:
| Spec. & model | Sieve width (cm) | Mass (kg) | Wind pressure (Pa) |
Air suction amount (m³/h) |
Output (t/h) | Boundary dimension (L × W × H) | ||
| Wheat | Corn | Unhusked rice | ||||||
| TQSF63 | 63 | 280 | ＜980 | 4500 | 4~6 | 3~4 | 3~5 | 1450×876×1800 |
| TQSF80 | 80 | 340 | ＜980 | 6000 | 8~9 | 5~6 | 6~7 | 1450×1046×1800 |
| TQSF100 | 100 | 400 | ＜980 | 8000 | 10~12 | 7~9 | 8~9 | 1500×1246×1900 |
| TQSF125 | 125 | 500 | ＜980 | 10200 | 13~17 | 10~12 | 11~13 | 1500×1496×1920 |
| TQSF150 | 150 | 610 | ＜980 | 12000 | 17~22 | 12~14 | 13~15 | 1500×1746×1800 |
| TQSF180 | 180 | 680 | ＜980 | 15000 | 22~28 | 15~17 | 16~18 | 1500×1996×1800 |
| TQSF200 | 100×2 | 720 | ＜980 | 17000 | 20~22 | 14~18 | 16~18 | 1500×2246×1900 |
| TQSF250 | 125×2 | 980 | ＜980 | 20600 | 28~32 | 18~24 | 22~26 | 1500×2796×1920 |
