Explain:

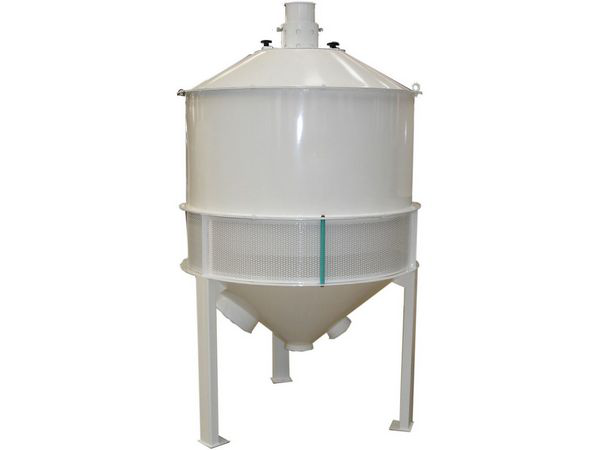

　　This type of equipment is specially used to separate husks, dust and other small impurities from grains (such as wheat, corns, rice, oil-bearing crops, etc.). It can be widely used in grain depot, flour mill, rice mill, corn processing plant, oil plant, alcohol plant, etc. It is a kind of equipment which can perfectly solve the problem of flour mill - high ash content.

　　Characteristics:

　　1.The air suction area is large, and wind power can be saved;

　　2.Winnowing effect is satisfactory;

　　3.It is unpowered, and the later operating cost is low;

　　Technical parameters:

Spec. & model	Handling capacity (t/h)		Air suction amount (m³/h)		Mass (kg)	Boundary dimension (L × W × H)
	Pre-cleaning	Cleaning	Pre-cleaning	Cleaning
TXFL80	50	12	3000	2800	230	860×2100
TXFL100	65	16	3800	3500	360	1060×2150
TXFL120	83	20	4500	4100	400	1260×2200
TXFL150	100	25	5600	5200	530	1560×2600
